Raise3D – Pro3 Printer

Agile Production Made Simple

Forged from the Pro2 Series, Raise3D’s newly launched Pro3 Series professional dual extruder 3D printers meet the needs of both production and multi-sized rapid prototyping, with high precision and round-the-clock stable operation. The Pro3 Series is comprised of the Pro3, with a build volume of 300x300x300mm, and the Pro3 Plus, with a build volume of 300x300x605mm, fulfilling the requirements of large-scale production and multi-sized rapid prototyping. A high-quality printer design that includes enhanced features and a smart assistant system known as EVE, all of which make the Pro3 Series dual extruder 3D printers an excellent option for professional 3D printing.

The Pro3 Series dual extruder 3D printers connect with Raise3D’s 3D printing software ecosystem, that includes a 3D slicing program, ideaMaker, an open-software template called ideaMaker Library, and our cloud-based 3D printing software RaiseCloud.

Enhanced Printing Platform Features

The Pro3 Series features upgraded printing platform features for high-quality printing performance and a better overall experience.

• The auto bed leveling makes setting up a 3D printer quicker and simpler.

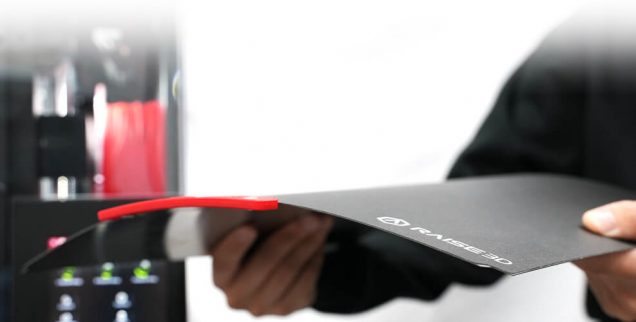

• The flexible build plate allows for the effortless removal of 3D printed parts.

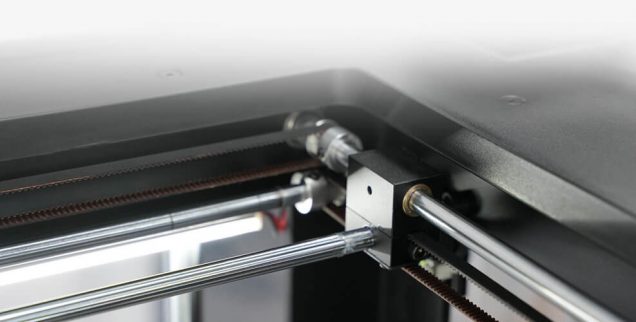

• The Z-axis rod stiffness increased by 75% to deliver a more stable performance.

These structural changes enable the Pro3 Series to provide better print results and an easier printing experience.

Detachable Hot End and Extruder Cover

The Pro3 Series is equipped with an independent modular extruder with a dual extrusion structure. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow convenient disassembly and replacement of components. The hot end of the Pro3 Series is easy to remove, which can be done without using tools, facilitating the replacement and maintenance of the hot end. Users can also easily take off the front cover of the extruder to accurately locate common printing impediments such as filament jams.

Air Flow Manager for Better Heat Dissipation

The Air Flow Manager of the Pro3 Series is located on the back of the printer, improving heat dissipation and air circulation, creating a stable environment inside the print chamber. Equipped with a HEPA air filter, Air Flow Manager can also filter and clean the air inside the chamber.

EVE Smart Assistant

The Pro3 Series has a built-in EVE assistant system, preloaded with common printing problems and corresponding solutions. The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job. The EVE assistant has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time. It also helps reduce maintenance time and communication costs for an efficient maintenance process.

Professional Dual Extruder 3D Printers

A dual extruder 3D printer can perform more advanced functions such as producing dual color models and dual material models. A professional dual extruder 3D printer will have additional design features resulting in a higher quality print job.

The Pro3 Series professional dual extruder 3D printers have a single-side nozzle lifting technology with fast nozzle switching. Therefore, the nozzles can lift independently and switch within a second, and without being affected by 3D printing material or temperature.

Technical Details

High repeatability

<0.005 mm, 5 micron

Lightning speed

< 1 second switching time

1.5 mm lifting distance

Compatible with flexible filaments

Why is high repeatability good for a 3D printer? What does high reliability mean?

3D printing is a process where an object is built up by thin layers. The 3D printer needs to move back and forth along the length of the model to create those thin layers. If the printer loses its position during that back-and-forth motion, the 3D printing process will no longer be aligned, and the 3D printed object will be ruined. The high repeatability and reliability ensure the printer does not become misaligned during the back-and-forth movements.

What does lightning speed mean?

Lightning speed refers to the overall amount of time the 3D printer takes to print an object. However, this speed is heavily influenced by the type of project being printed and how quickly the printer can switch directions during the back-and-forth movement. Having a <1 second switch time means the Pro3 Series can change directions while printing an object. This shortens the overall time needed to complete a 3D printing process. Keep in mind, the general time savings will still be influenced by the project type.

Why is a 1.5 mm lifting distance beneficial to a 3D printer?

Lifting distance refers to the clearance between the idle printing nozzle and the object being printed. There needs to be some distance between both to ensure the printer’s nozzle does not interfere with the printing. The 1.5 mm lifting distance on the Pro3 Series maintains enough distance between the idle nozzle and the model to not affect the printing process.

User Friendly Features

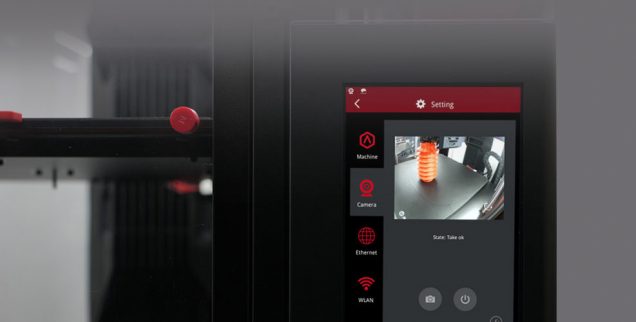

HD Camera, Eligible for Upgrade

The Pro3 Series uses a HD camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud, allowing users to keep track of every print job remotely and while on the move. This ability to check the 3D printing process gives peace of mind. The Pro3 Series also comes with an upgraded CMOS sensor to ensure better image quality.

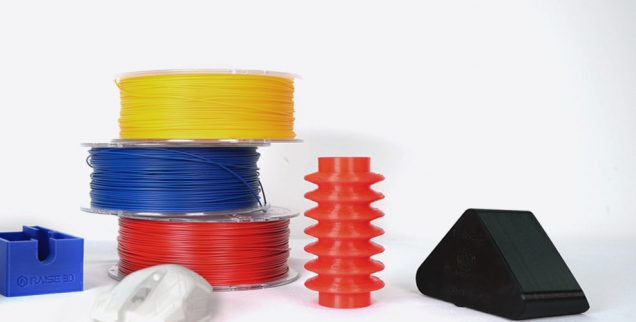

Capable of Printing a Variety of Filaments Up to 300℃

PLA / ABS / HIPS / PC / TPU / TPE / PETG / ASA / PP / PVA / Nylon
/ Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

Safety Features

Power Loss Recovery

Either a power outage or a filament outage (when the filament runs out) can cause a print job to be lost if they occur in the middle of the 3D printing process. However, the Pro3 Series has a filament run-out sensor on its extruders to alert when the filament is about to run out and saves the print job. It also has a second-generation power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.

Automatic Detection

Another safety feature of the Pro3 Series is that it can automatically detect when a door is opened and will immediately pause the print.

Raise3D Ecosystem

Pair ideaMaker and RaiseCloud with any of our 3D printers to create a Raise3D ecosystem for the best efficiency when 3D printing.

(official website : Raise 3D Technologies, Inc. – Pro3 Series)
